Chapter 1 - Setting up and Configuring WinUAE for WB2.05 on HDF

Back To Guides Index

1. Download WinUAE executable (Setup program) from www.winuae.net or Emulators Downloads

2. Install WinUAE and follow the on screen instructions.

3. Next copy your Kick-Start ROM file into C:\Program Files\Winuae (or make a new directory and name it kickstarts then copy your ROM file into this new directory.)

4. Next make another new directory in C:\Program Files\Winuae and name it Hard Disks

5. In C:\Program Files\Winuae\Hard Disks make another new directory and name it Work

6. Now close all open explorer windows and launch WinUAE.

7. If it asks you to 'Detect 16-bit Pixel format', click Yes.

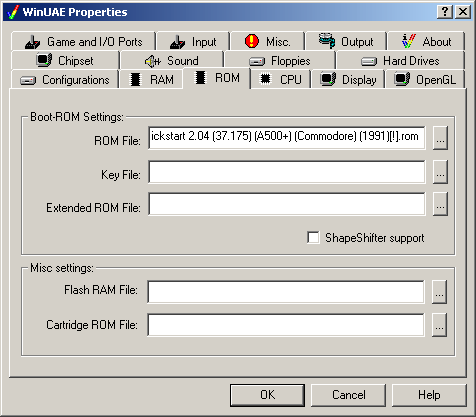

8. Go to the ROM tab and click '...' button and set the path to your kick-start 2.x ROM File.

9. Next go to the Hard Drives tab.

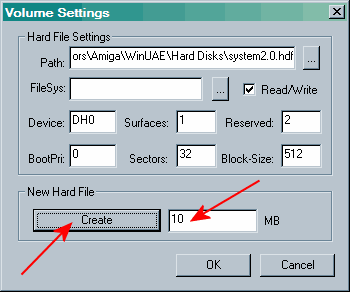

10. Left click Add Hardfile...

11. In older versions of Winuae (before 22r1) you have to input the hdf size using bytes and have to work it all out, if you do not you could cause data corruption when the hdf runs out of free space. So to make a 10MB hdf you need to type in 10485760 into the bytes box.

(If you want to make a bigger sized hdf file you need to use the formula:

If you are using Winuae 22r1 or newer versions you type in Megabytes, so type in 10 instead. (Thanks to andreas for the guide correction.)

12. Click Create.

13. A window will open, so go to the C:\Program Files\Winuae\hard disk directory. In the file Name box type System2.0 then click ok.

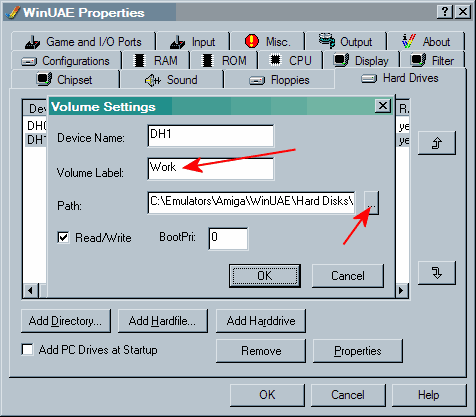

14. Click Add Directory...

15. In Volume Name/Label: type in Work

16. In Path type C:\Program Files\WinUAE\Hard Disks\Work (or click '...' button and point to this directory) And then click OK.

17. Next go to the CPU tab.

18. Under CPU Type:- select 68000

19. Tick More compatible.

20. Under CPU Emulation Speed:- select Match A500 speed

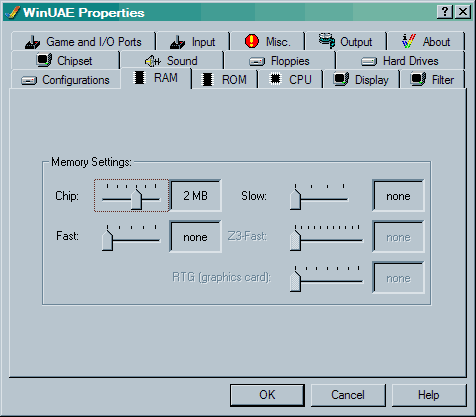

21. Go to the RAM tab.

22. Set The following Memory Settings to:-

• Chip - 2 MB

• Fast - Somewhere around 1-2 MB (optional)

23. Under the Chipset tab just tick Full ECS or ECS Agnus

24. Now Go to the display tab

25. In the option Amiga screen resolution, Select via the drop-down box - 640x480 32-bit or 16-bit.

26. Under Centring:- Tick both the Horizontal and Vertical settings.

27. Under Settings:- Tick Correct aspect ratio, Full-Screen

28. Under Line mode:- Tick Doubled.

29. Now Go to the Sound tab.

30. Set the following options:-

• Sound Emulation - choose Emulated 100% accurate.

• Sound buffer size - I find it best at around the 5 to 6 setting

• Frequency - choose 44000 Hz

• Stereo Mode - choose Stereo

• In WinUAE 22r7 you will notice the settings part has changed. Click on the \/ dropdown to select Frequency - 44000 Hz. Also I find Audio Filter is best set to Emulated.

• In WinUAE 0.8.22 Release 5 you will notice the Interpolation options have been changed to Disable, RH and Crux: I find Crux to be the best option to use.

  What do RH and Crux stand for?

  Crux is Berndt Schmidts old handle.

  RH stands for Richard Hoffmann.
  Thanks to Lockrobster for the information.

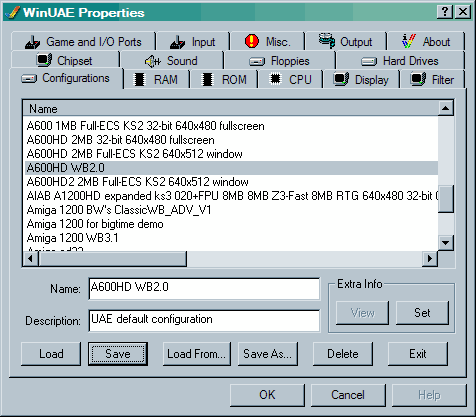

31. Last goto Configurations tab.

32. Type in Name box i.e.:- A600HD WB2.0 and Type something in Description box and click the Save button (you should then see the config appear in the list.)
